M12 Panel Mount Connectors in particular must be adaptable to a wide range of requirements.
binder, a specialist in industrial circular connectors, offers a particularly wide range of M12 Panel Mount Connectors for this area of application. The portfolio covers a wide variety of codings, connection types, materials and fastening solutions, thus offering maximum design freedom for integration into devices and systems.
‘With our M12 Panel Mount Connectors portfolio, we offer a suitable solution for almost every automation application - from power supply and industrial data communication to sensor integration,’ says Product Manager Ron Hautzinger. ‘Our customers benefit not only from the variety, but also from the consistent quality and the ability to obtain system solutions such as pre-assembled cables or PCB assembly from a single source.’
Key Industrial Applications of M12 Panel Mount Connectors
M12 Panel Mount Connectors from binder are used wherever signals, data or power need to be safely integrated into a device or housing. Typical applications include:
- Manufacturing and automation technology
- Control cabinets
- Sensors and drives
- Railway and building technology
- Robotics (e.g., sensor connections on joints)
- Automated guided vehicles, conveyor and logistics systems
- Agricultural machinery for harsh environments (e.g., control of lighting, air conditioning, access systems)
Extensive Variety of Codings and Connection Types
Thanks to different codings (A, B, D, K, L, S, T and X), numerous protocols and requirements can be covered, such as:
- A-coded: CAN bus & IO-Link applications
- B-coded: Profibus applications
- D- and X-coded: Industrial Ethernet protocols like PROFINET
- K- and S-coded: AC applications up to 630 V AC
- L- and T-coded: DC up to 63 V DC

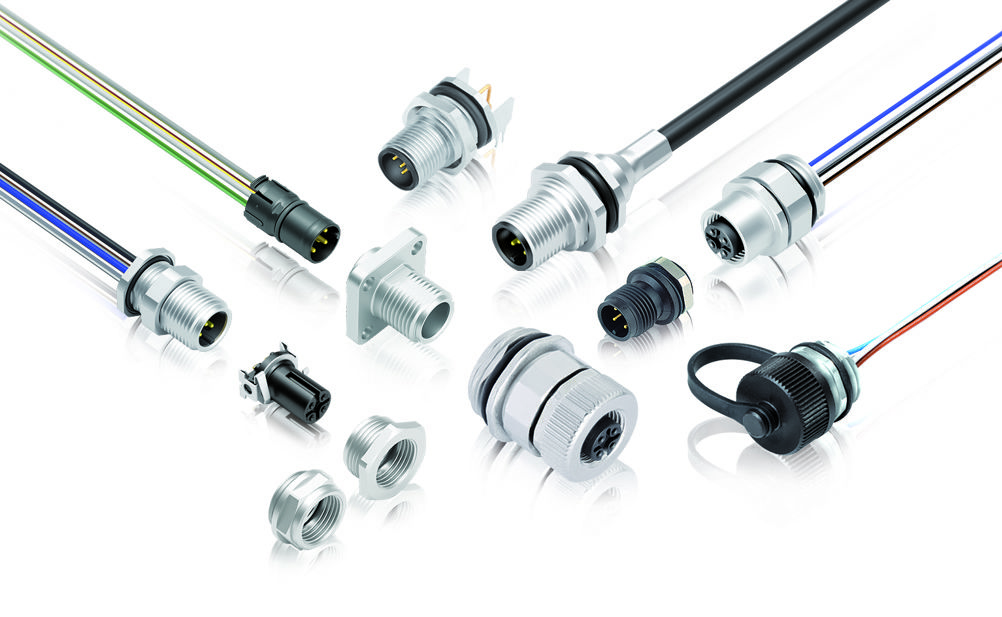

Product variants include:
- Straight and angled versions
- Connection types: stranded wires, soldering, THT, THR, SMT for automated PCB assembly
- Materials: stainless steel, plastic, metal
- Protection classes up to IP69.
Design Considerations: Durability, Protection, and Integration
Customers often focus on:
- High degrees of protection
- Vibration resistance
- Space-saving designs
- EMC protection
‘Our panel mount solutions specifically address these points - whether through compact designs for tight installation spaces or shielding concepts for interference-free data transmission,’ explains Ron Hautzinger. Screw mounting enables simple integration into front panels or housings.
Challenges and Innovations in Product Development
In developing customised M12 Panel Mount Connectors, challenges include:
- Robustness and tightness
- Simple assembly
- Reliable coding
binder meets these with:
- Modular designs
- Durable materials
- Clever assembly systems
Technical challenges internally faced include:
- Efficient heat dissipation
- Compact integration with limited space
- Optimised shielding for EMC compliance
These aspects are continuously incorporated to meet future technological and normative requirements.
Complete System Solutions Under binder Solutions
‘A clear trend is the demand for complete solutions,’ emphasises Ron Hautzinger. binder offers:
- Complete system solutions including PCB, panel mount modules, and customised cable assemblies
- Modular approach reducing interfaces
- Simplified assembly and increased operational reliability
This integrative system approach is bundled and further developed under the name binder solutions.
Technical Specifications of M12 Panel Mount Connectors
The technical data varies depending on the series, but all products offer reliable and secure connections:
- Type: plug or socket
- Design: straight or angled
- Coding: A, B, D, K, L, S, T and X
- Number of pins: 2 to 12, depending on coding
- Protection class: up to IP69K
- Material: Stainless steel, plastic or metal
- Connection types: stranded wire, solder, THR, SMT, screw terminal or THT
