Ultrasonic flow meter for process and control

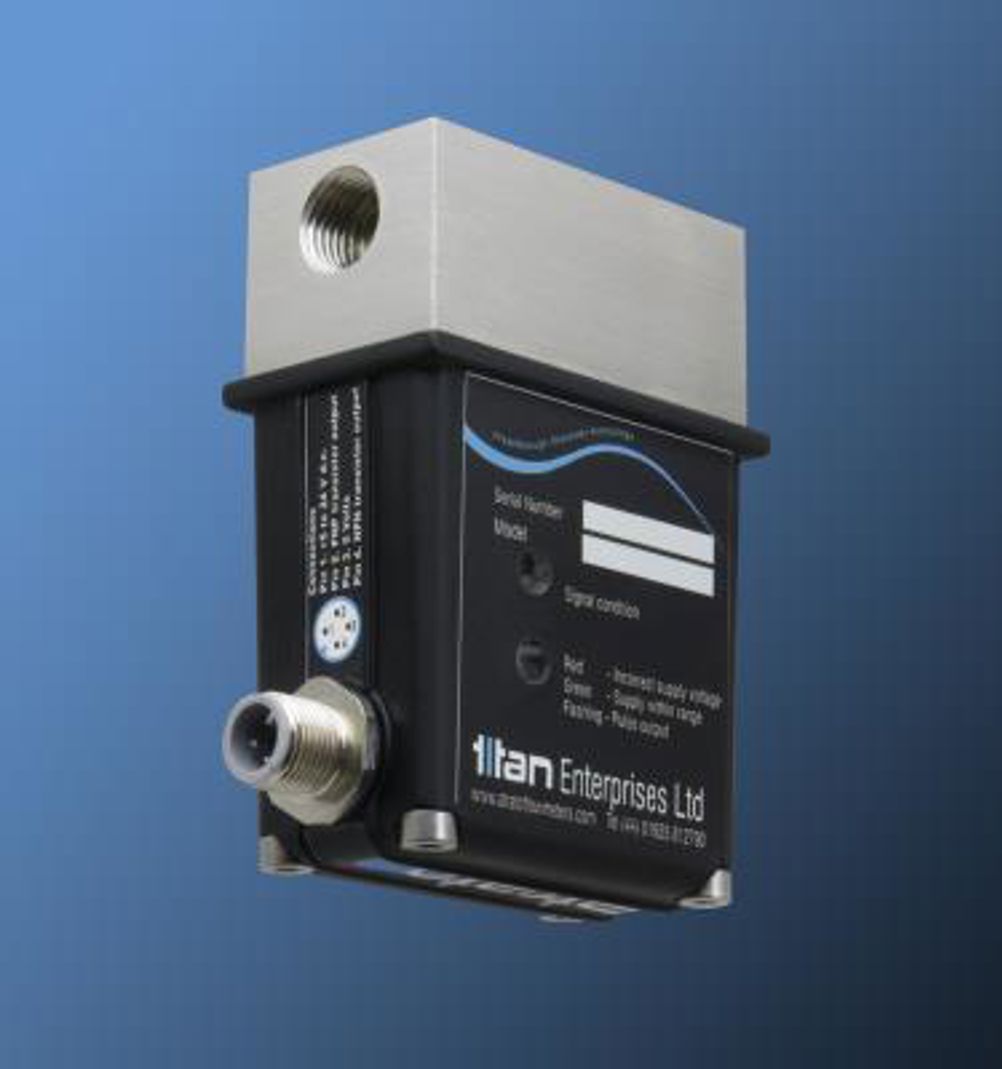

Titan Enterprises has announced the Process Atrato, a low volume, high performance ultrasonic flow meter packaged to address the challenges of the process and control environment.

The compact flow meter combines the technological advantages of Atrato ultrasonic technology with a durable construction. Built from 316 stainless steel and PEEK, the Process Atrato is supplied sealed to the IP65 standard. This combination is said to provide reduced cost of ownership compared to existing flow measurement technologies.

Rated for use up to 65°C and 20Bar the Process Atrato is available in four models operating over flow ranges from 2ml/min to 15litres/min, featuring an accuracy of ±1% over the whole flow range. Each flow meter is calibrated with a pre-set 'K' factor so all meters of the same flow range are fully interchangeable simplifying assembly and set-up procedures for OEM manufacturers looking to integrate the flow meter into their process and control set-up.

Using patented technology that enables it to operate accurately over wide flow ranges, the Atrato range of inline flow meter signal processing system permits flow measurement across the whole Reynolds number range allowing both viscous and non-viscous products to be metered.
