Washdown, watertight and dust-resistant performance IP67

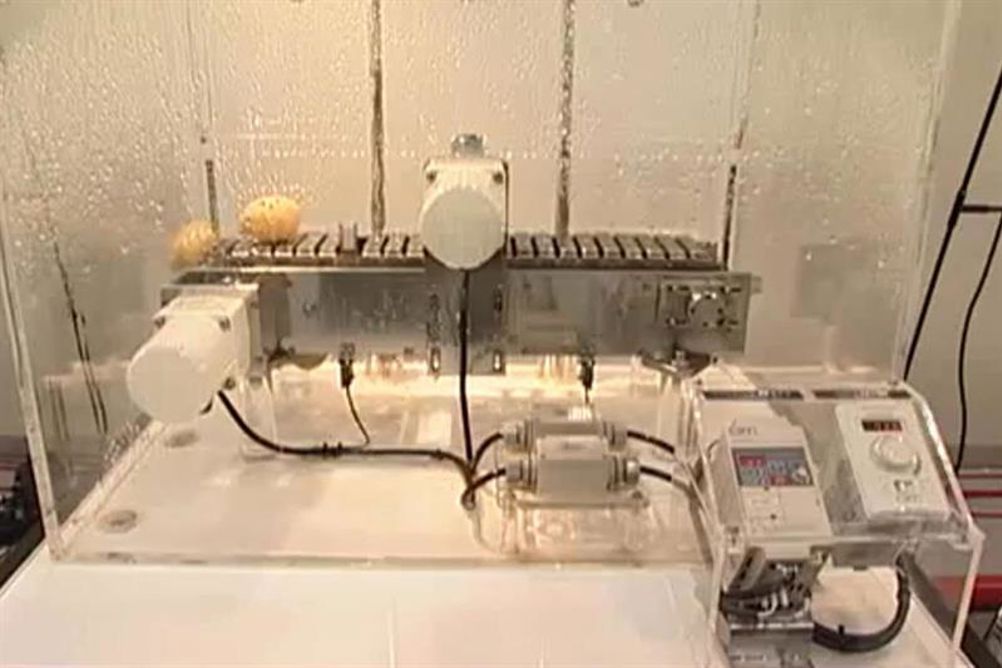

The FPW Series washdown gear motors from Oriental Motor are watertight, dust-resistant geared induction motors which conform to the IEC standard IP67. They can be used where they are splashed with water.

IP67: the letters, "IP" stand for "Ingress Protection" and are followed by two numerical digits which indicate degrees of protection and solid objects and moisture. Specified with IEC 60529 and IEC 60034-5.

FPW Series IP67 protection are UL recognised and CSA and certified under the China Compulsory Certification System (CCC System). CE Marking is used in accordance with Low Voltage Directive. Additionally, the series features high corrosion resistance achieved through special anti-corrosive coating and re-examination of shaft material: stainless steel (SUS303 type).
