Safety Guarding from RK Rose+Krieger

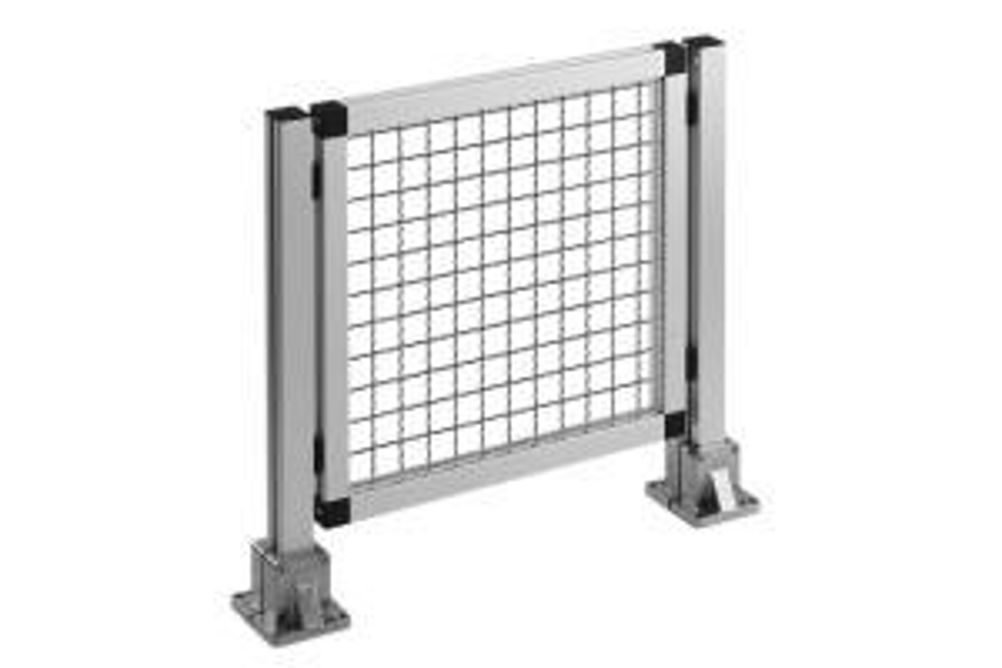

Made using our plain faced ESP profile and utilising 30x30 or 40x40 woven mesh, the safety guarding system from R+K offers an attractive and modular system that is easy to install and maintain. Posts (generally 50mm) are mounted into Base clamps that can be easily bolted to the floor and also have a grub screw should the floor not be level.

The R+K click & safe connection system not only makes panels easy to fix and remove from posts for access if necessary (with a simple tool) but also complies to EU Machinery Directive 2006/42/EC. Also as there are no standard panel sizes the designs are flexible and work easily within your perimeter boundaries. The only restriction is with the mesh which has a maximum sizes of 2mx3m.

So after the posts are suitably secured to the ground and the panels assembled, they need only be inserted at the bottom and pressed in at the top and the job is done.

Main features …

Stable protection system with aluminium design

Minimal effort required in construction

Quick assembly time

Clamping profiles allow different materials to be installed

Smooth, easy to clean outer surfaces

Comprehensive range of accessories

Complies with the new EU Machinery Directive 2006/42/EC
