Pot sensor for linear measurements

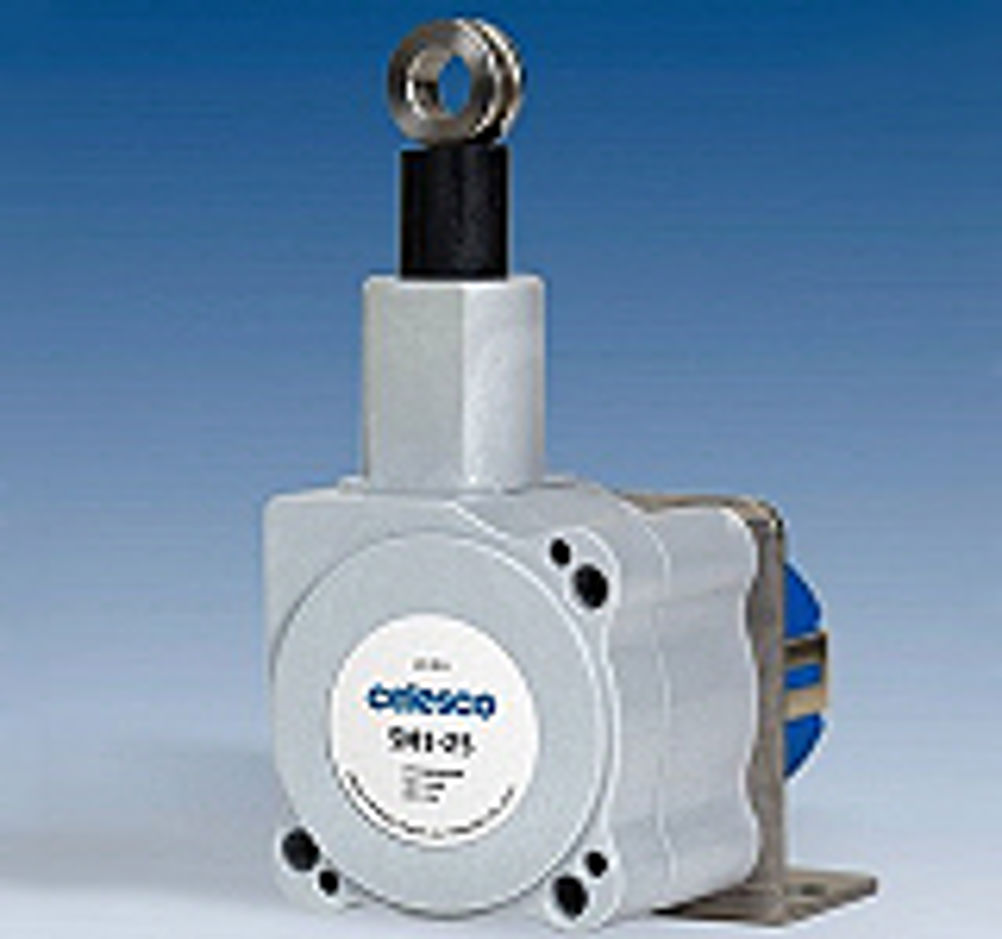

Variohm EuroSensor has launched a range of miniature string pot and cable extension linear sensors.

The sensors measure just 43 x 31 x 66mm. With a choice of four standard measurement ranges from 0 - 63.5 up to 0 - 635 mm, the long-life plastic hybrid potentiometer used in each model delivers a precise voltage divider output from a source voltage of up to 30VDC that is absolute and linearly proportional to the travel of the spring-loaded cable. T: 01327 351004 E: sales@variohm.com
